Portable, Nebulising Aroma Diffuser

Assembly

1. Gently push the bottle from the bottom of the diffuser unit to eject the nozzle from the top
2. Unscrew the 20ml bottle from the diffuser nozzle
3. Fill the empty bottle with any essential oil of your choice or use any filled-in essential oil bottle (5/10/15/20ml) with its dropper cap removed
4. Tighten the bottle to the nozzle, insert the unit back and ensure that the triangle symbols align
5. Use this nebulising diffuser only in upright position. If you tilt the diffuser with the power button on, it will stop functioning temporarily until the diffuser is placed back upright

Charging the Diffuser

• Charge the built-in battery using the USB-C cable provided (or the one you may already have)
• You may use your computer USB interface or a USB interface adapter or your car charger with USB interface or any DC5V USB power plug to connect to the USB Type-C cable
• When you charge the diffuser for the first time, it may take 4 to 6 hours to fully charge
• While charging, the power button will flicker and when fully charged, the power button will remain stable

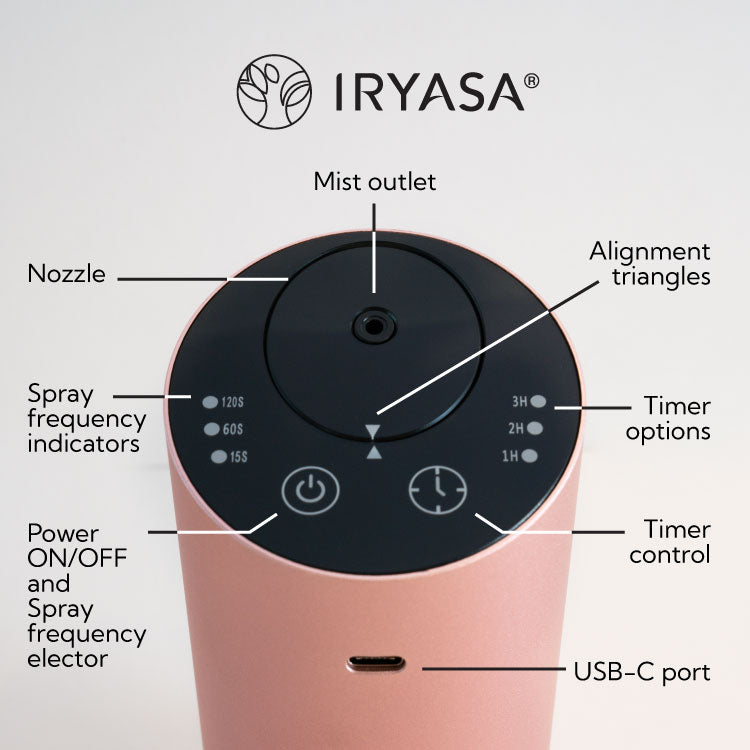

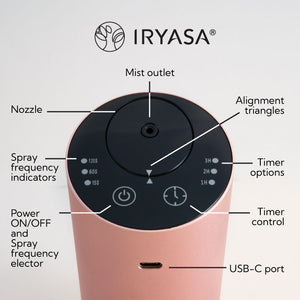

Touch Controls

Power On/Off

• To turn on this waterless diffuser, press the power button for 3 seconds until the blue LED glows
• To turn off the diffuser, press and hold the power button or the timer button for 3 seconds

Spray Frequency Cycle

• Option 1: Diffuses essential oils for 15 seconds and pauses for 165 seconds
• Option 2: Diffuses essential oils for 1 minute and pauses for 2 minutes
• Option 3: Diffuses essential oils for 2 minutes and pauses for 1 minute

To toggle between the options, short press the power button and the selected diffusing frequency will be indicated with blue LED.

Timer Options

• 1H: 1 hour
• 2H: 2 hours
• 3H: 3 hours

Short press the timer button to switch between options and the selected option will be indicated with blue LED. If no option is selected, the diffuser will auto stop in 4 hours.

• Do not modify or disassemble the diffuser
• Suitable for use for temperature range b/w 10° to 50° C
• Use only 100% pure essential oils; do not use synthetic fragrance oils, essential oils that are mixed with carrier oils, massage oils, etc.
• Do not insert any pin, wire or other objects in the mist outlet
• If using DC5V power plug/charger, use the ones from branded manufacturers only
• Do not bend, twist or modify the USB-C cable; do not place the cable close to any hot objects nor place heavy objects on top the cable
• This nebulising diffuser is not to be used as a medical inhaler or vaporiser

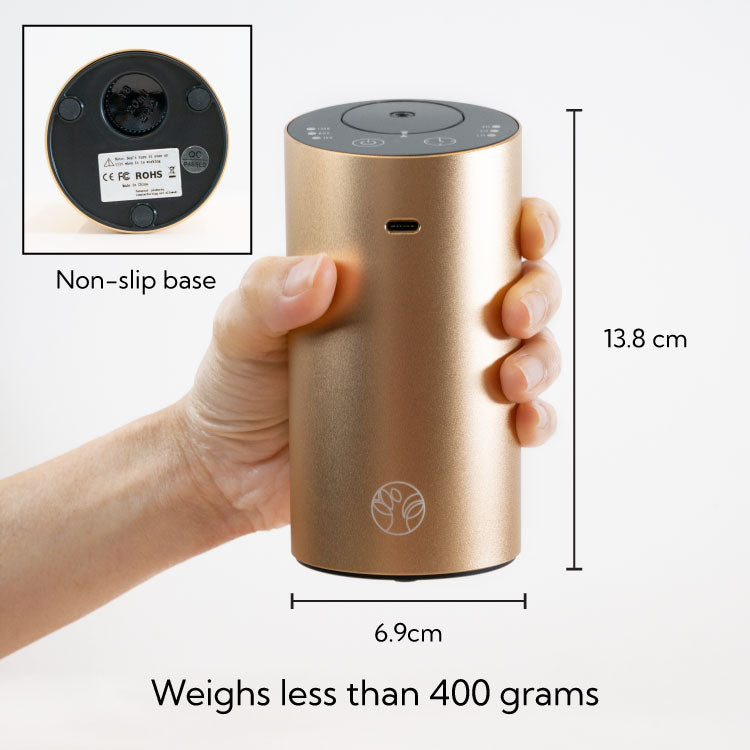

• Dimensions: 6.9cm x 13.8 cm
• Weight: ~390gm
• Coverage: ~100 sq. ft
• Charging voltage: DC5V 1A
• Battery capacity: 2000mAh
• Battery life: ~60 hours when fully charged
• Charging cable type: USB-C
• Oil bottle compatibility: 5ml/10ml/15ml/20ml
• Indicators for touch controls: Blue LED
